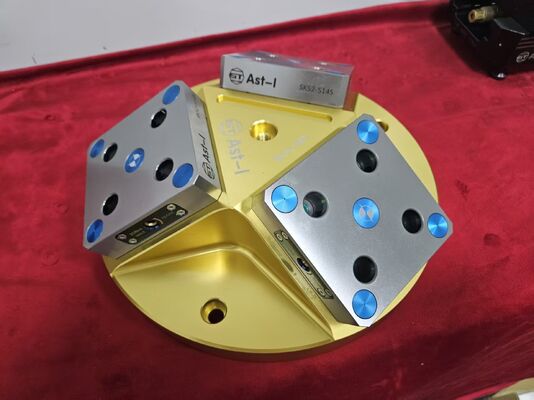

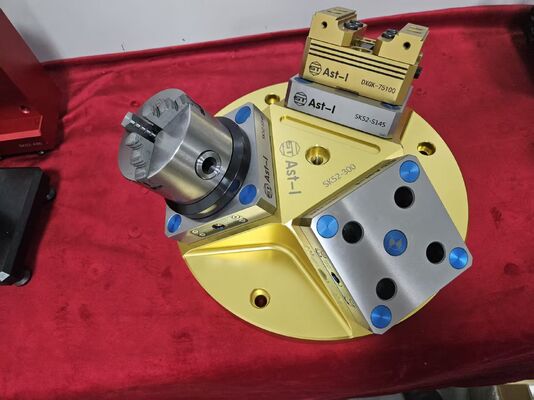

Zero Point Fixture - SK96-205
Advanced precision tooling solution designed to enhance efficiency and accuracy in CNC machining operations. Features quick installation (under 5 minutes) and exceptional 0.005mm repeatability for high-precision manufacturing.
Key Features
- Exceptional repeatability within 0.005mm
- Quick installation - less than 5 minutes setup time
- Robust 18KN locking force for maximum stability
- Includes four pull studs as standard accessories
- Compatible with 3, 4, and 5-axis CNC machines
- Works with aluminum vise jaws for lightweight durability
- Reduces cycle times by up to 80%
- Compact dimensions: 208×106×25mm
Applications
Ideal for high-precision environments including aerospace, automotive, mold making, and general manufacturing. Perfect for CNC zero point clamping systems, 5-axis fixture applications, and 4-axis vise configurations where accuracy and repeatability are critical.
Technical Specifications
| Brand |
AST |
| Model |
SK96-205 |
| Repeatability |
0.005mm |
| Locking Force |
18KN |
| Dimensions |
208×106×25mm |
| Weight Range |
5-20kg (depending on model) |
| Clamping Type |
Single clamping design |
Customization Options
AST offers comprehensive customization services including integration with aluminum vise jaws and tailored solutions for specific production requirements. OEM support available for specialized manufacturing environments.
Support & Services
Comprehensive technical support including installation guidance, troubleshooting, and maintenance. Calibration services, training sessions, and workshops available to maximize fixture performance and longevity.
Packaging & Shipping
Each unit is securely packaged in custom foam inserts within double-walled cardboard boxes. Components are individually wrapped and labeled. Eco-friendly materials with reliable carrier shipping including tracking and insurance options.
Frequently Asked Questions
What is the brand and model number of the Zero Point Fixture?
Manufactured by AST, model number SK96-205.
What are the main features of the AST SK96-205 Zero Point Fixture?
Quick and precise workpiece positioning, easy installation, high repeatability, and improved machining efficiency.
Is the AST SK96-205 compatible with different machine types?
Yes, designed for compatibility with various CNC machines including 3, 4, and 5-axis configurations.
How does the SK96-205 improve machining operations?
Reduces setup time, increases productivity, and maintains precision through fast, accurate workpiece clamping.
What materials is the AST SK96-205 Zero Point Fixture made from?
Constructed from high-quality, durable materials for long-lasting performance in demanding machining environments.
