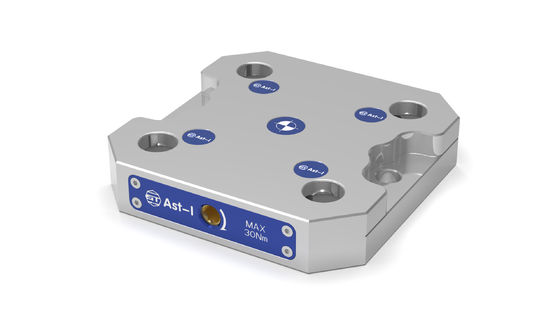

Manual Flexible Zero Point Clamping Quick-Change Pallet System For 5 Axis SK52-S120

zero point clamping quick-change pallet system

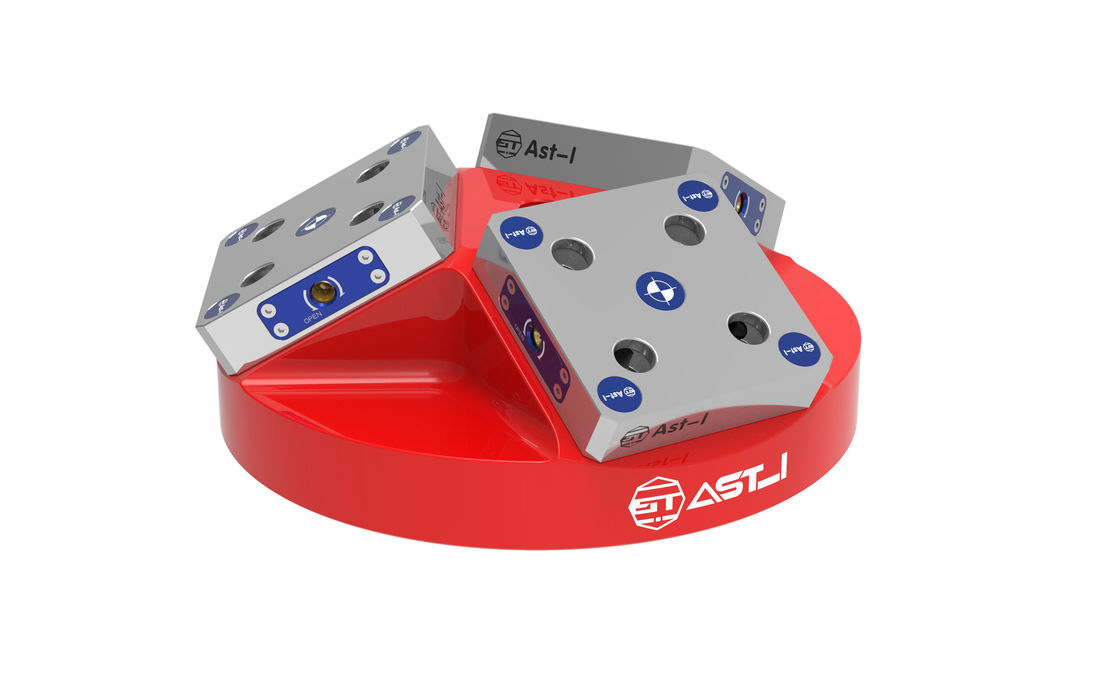

The four-hole zero-point locator is a positioning tool that can quickly exchange fixtures and fixed
fixtures, The standard installation method enables tools such as vices, pallets, chucks, etc, to be
quickly and repeatedly changed between various cnc machine tools.

No need to disassemble and  calibrate time.

Size:106x106x25mm
Repeat Position:0.005mm
Locking force:18KN (4pcs pull stud)
Material: steel
Weight:1.6Kg

FAQ

1. How To Order?
Step 1: please tell us what model and quantity you need;
Step 2 :then we will make a PI for you to confirm the order deta;
Step 3 : when we confirmed everything, arrange the payment;

Step 4: finally we deliver the goods within the stipulated time.

2. About precision
All zreo position system have a repeat positioning accuracy of within 0.005mm

3. Delivery Time
Small Order: in stock normally,deilver goods once payment received.
Large Order: 5-7 days
OEM Order: 7-15days

4. OEM logo Service
we supply service of marked logo.

5. After-sales Service
a. chucks warranty:1 year
b. If you find any defective accessories in the first order, we will give you the new parts for free to replace in the next order,
the fact is that our products fraction defective is lower than 1%.

Unlock Method:
Pneumatic/manual
