Steel Magnetic CNC Workholding Fixture 4 Axis Manual Zero Point Positioning

Name: Steel Magnetic CNC Workholding Fixture 4 Axis Manual Zero Point Positioning
Brand: Dongguan LiHeng machinery industry co.,ltd
SKU: SK96-190
Price: 395.00 USD
Availability: InStock

همه محصولات

Axis Fixtures
(44)

CNC Workholding Fixture
(21)

Dovetail Fixture
(26)

Zero Point Fixture
(39)

Self Centering Vise
(20)

5 Axis Vise
(11)

CNC Pull Studs
(9)

CNC Machining Parts
(33)

Pneumatic Air Vise
(10)

گواهی

چت IM آنلاین در حال حاضر

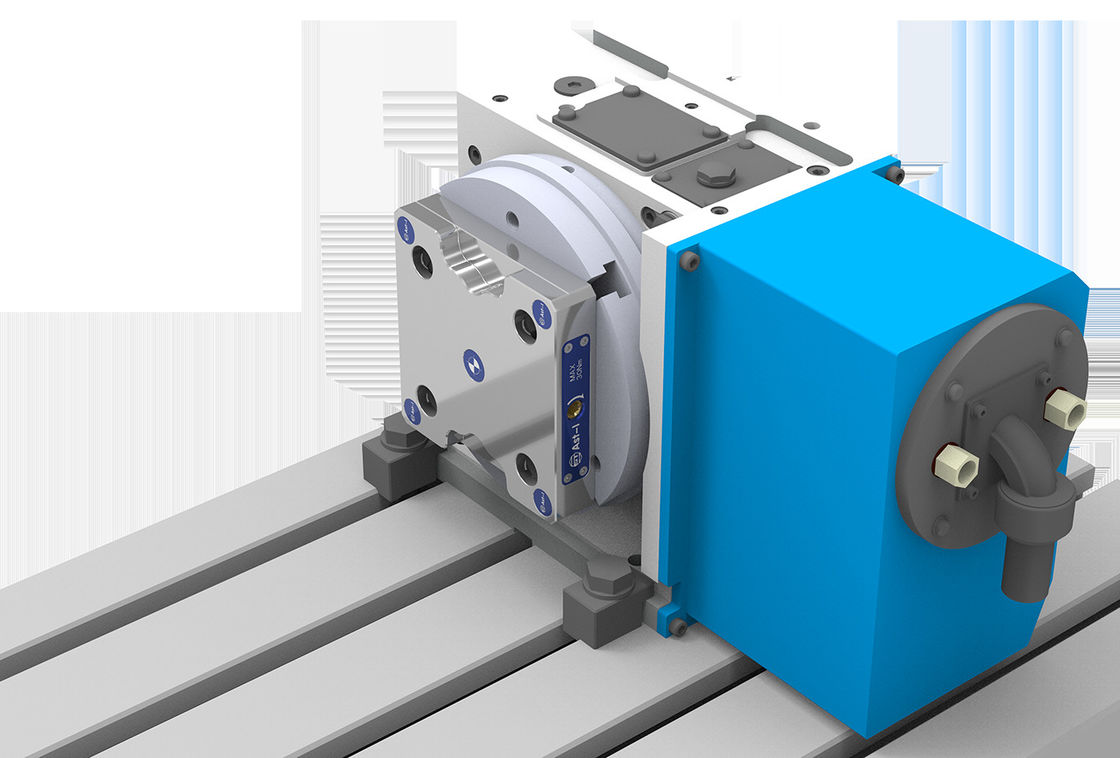

Steel Magnetic CNC Workholding Fixture 4 Axis Manual Zero Point Positioning

تصویر بزرگ : Steel Magnetic CNC Workholding Fixture 4 Axis Manual Zero Point Positioning

جزئیات محصول:

محل منبع:	چین
نام تجاری:	AST
شماره مدل:	SK96-190

پرداخت:

مقدار حداقل تعداد سفارش:	1
جزئیات بسته بندی:	20021060 میلی متر
زمان تحویل:	5-8 روز کاری
شرایط پرداخت:	T/T

مخاطب

Steel Magnetic CNC Workholding Fixture 4 Axis Manual Zero Point Positioning

شرح

نام:	وسایل کارگاهی مغناطیسی	مواد:	فولاد
اندازه:	150x150x30mm	تکرارپذیری:	در 0.005 میلی متر
ویژگی ها:	تبادل انعطاف پذیر به سرعت	OEM:	پشتیبانی کنید
برجسته کردن:	Steel CNC Workholding Fixture,CNC Workholding Fixture 4 Axis,Magnetic Workholding Fixtures , CNC Workholding Fixture 4 Axis , Magnetic Workholding Fixtures

Manual Zero Point Positioning Quick-Change Single Plates System For 4 Axis Cnc SK96-S190

The clamping edge of this zero-point plate allows it to be mounted on essentially all machine tables if clamps are used for this purpose.

The Quick•Point 96 variant is also popular as an interface on pallet automations or on your own customized clamping fixture.

Its mounting holes are also suitable for the Quick•Point riser made of aluminium, which can be used to improve accessibility for 5-sided machining.

No need to disassemble and calibrate time.

Maximize changeout efficiency with zero point quick exchange system

Size:150x150x30mm
Repeat position:0.005mm
Locking force:22KN (4pcs pull stud)
Material: steel
Weight:4.0Kg

Steel Magnetic CNC Workholding Fixture 4 Axis Manual Zero Point Positioning 0

Steel Magnetic CNC Workholding Fixture 4 Axis Manual Zero Point Positioning 2

Steel Magnetic CNC Workholding Fixture 4 Axis Manual Zero Point Positioning 3

Steel Magnetic CNC Workholding Fixture 4 Axis Manual Zero Point Positioning 4

Steel Magnetic CNC Workholding Fixture 4 Axis Manual Zero Point Positioning 6
