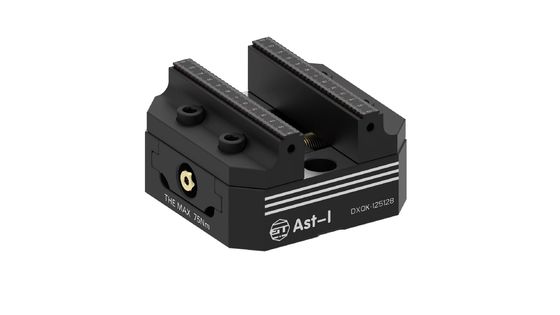

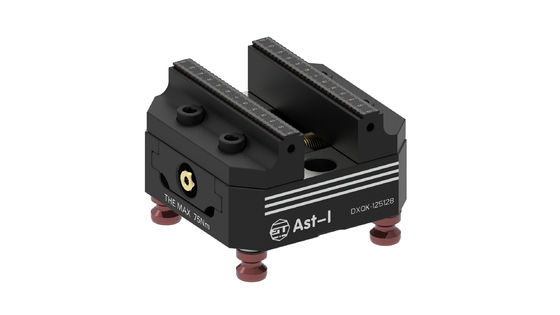

HRC50 Self Centering Vise Steel Manual Precision Machine Vise

HRC50 Self Centering Vise Steel Manual Precision Machine Vise
HRC50 Self Centering Vise Steel Manual Precision Machine Vise
HRC50 Self Centering Vise Steel Manual Precision Machine Vise HRC50 Self Centering Vise Steel Manual Precision Machine Vise HRC50 Self Centering Vise Steel Manual Precision Machine Vise HRC50 Self Centering Vise Steel Manual Precision Machine Vise

تصویر بزرگ :  HRC50 Self Centering Vise Steel Manual Precision Machine Vise

جزئیات محصول:
محل منبع: چین
نام تجاری: AST
شماره مدل: DXQ125128
پرداخت:
مقدار حداقل تعداد سفارش: 1
جزئیات بسته بندی: بسته بندی کارتن 205*180*124mm
زمان تحویل: 5-8 روز کاری
شرایط پرداخت: T/T
قابلیت ارائه: 5-7 روز کاری پس از تایید سفارش
مخاطب

HRC50 Self Centering Vise Steel Manual Precision Machine Vise

شرح
CNC: گیره 5 محوره مواد: فولاد
اندازه: 126x128x73.5 متر حداکثر گشتاور: 75 نیوتن متر
ویژگی ها: ساختار ویژه دم کبوتر 45 درجه با دندانه فک های قابل تنظیم: کاربران می توانند مرکز گیره گیره را با تنظیم پیچ های دو طرف آن کالیبره کنند.
برجسته کردن:

HRC50 Self Centering Vise,Self Centering Vise Steel,Manual Precision Machine Vise

,

Self Centering Vise Steel

,

Manual Precision Machine Vise

Manual Fixture Precision 5-Axis Self Centering Vise For Cnc Milling Machine 125128

  • Significantly upgrade CNC 5-Axis Machines
  • Special 45° dovetail structure with teeth
  • The patented calibration system can regulate clamping center easily and rapidly
    • 1.Vise body is made of High quality Steel and its slideways gone through high-frequency hardening to achieve HRC50, which makes the whole part durable.
    • 2.Detachable jaws are made of High quality Tool Steel and gone through carburizing to achieve HRC55. Since both sides are fixed size and able to be used as a datum, users can reverse them to increase clamping range.
    • 3.The repeatability positioning precision of its clamping center is within 0.02mm.
    • 4.Users can calibrate the clamping center of vise by adjusting the screws on both ends.
    • 5.The 45° dovetail structure with teeth on the upper jaw ensures the bottom of the workpiece to be firmly clamped.

Product Description:



Size:126x128x73.5m
Clamping range:0-128mm
Clamp body width:125mm
Maximum torque:75Nm
Weight:6.0Kg

HRC50 Self Centering Vise Steel Manual Precision Machine Vise 0



Max opening 155mm self centering 5 axis vise

1. Material: steel.

2. Warranty:1 years

5.max clamping range:155mm

Product Name
self centering vise DXQ125128
Material
stainless steel
Used

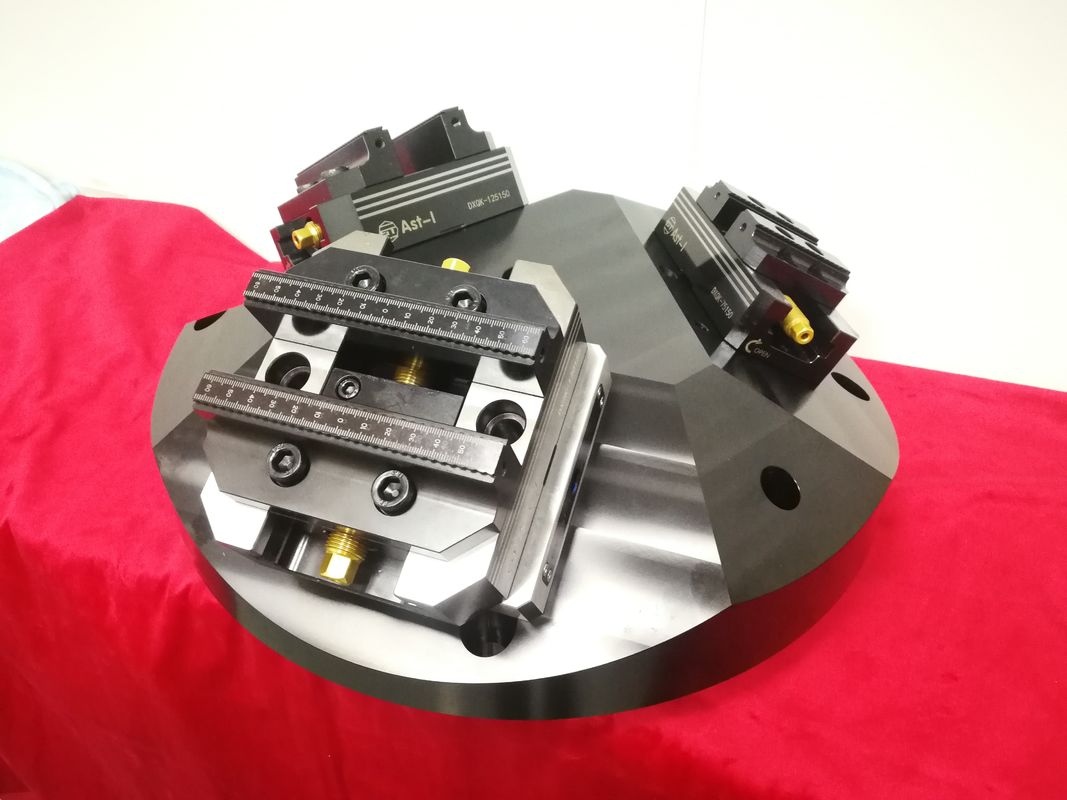

Four-axis, five-axis, CNC indexing plate, precision machining of vertical horizontal CNC milling machine.
Advantage
Easy to use,precise clamping.

HRC50 Self Centering Vise Steel Manual Precision Machine Vise 1
HRC50 Self Centering Vise Steel Manual Precision Machine Vise 2HRC50 Self Centering Vise Steel Manual Precision Machine Vise 3
HRC50 Self Centering Vise Steel Manual Precision Machine Vise 4
